Zeppelin Notebooks

It is possible to create a SPARK runtime with Apache Zeppelin enabled.

Follow the below are the steps:

  1. Go to Runtime and click the plus icon (mceclip0.png).
  2. Insert your configurations for the SPARK runtime:
    • Turn on the Zeppelin switch for your runtime (turn off "Termination on completion" so that you get more time to experiment with the notebook).
    • Ensure "Idle Time Deletion Interval In secs" is set, the default recommended setting is 600.
  3. Run any job from GCP QA with this created runtime. Example - BQ Loader job or an AA Loader job.
  4. When a cluster is spun up with your runtime, go to STEP LOGS.
  5. Click on details in the INFRASTRUCTURE CREATE CLUSTER step.  A window with Zeppelin URL should be displayed.
  6. Copy-paste the Zeppelin URL in your local browser.
  7. Access to all the data from the Zeppelin notebook is now available.

Available Interpreters

  • Spark (version 2+)
  • BigQuery
  • Python
  • .. many more

Configuring Zeppelin with BigQuery​

BigQuery requires a minor set up of PROJECT_ID when creating a new Zeppelin notebook.

Using Zeppelin Notebook with Spark​

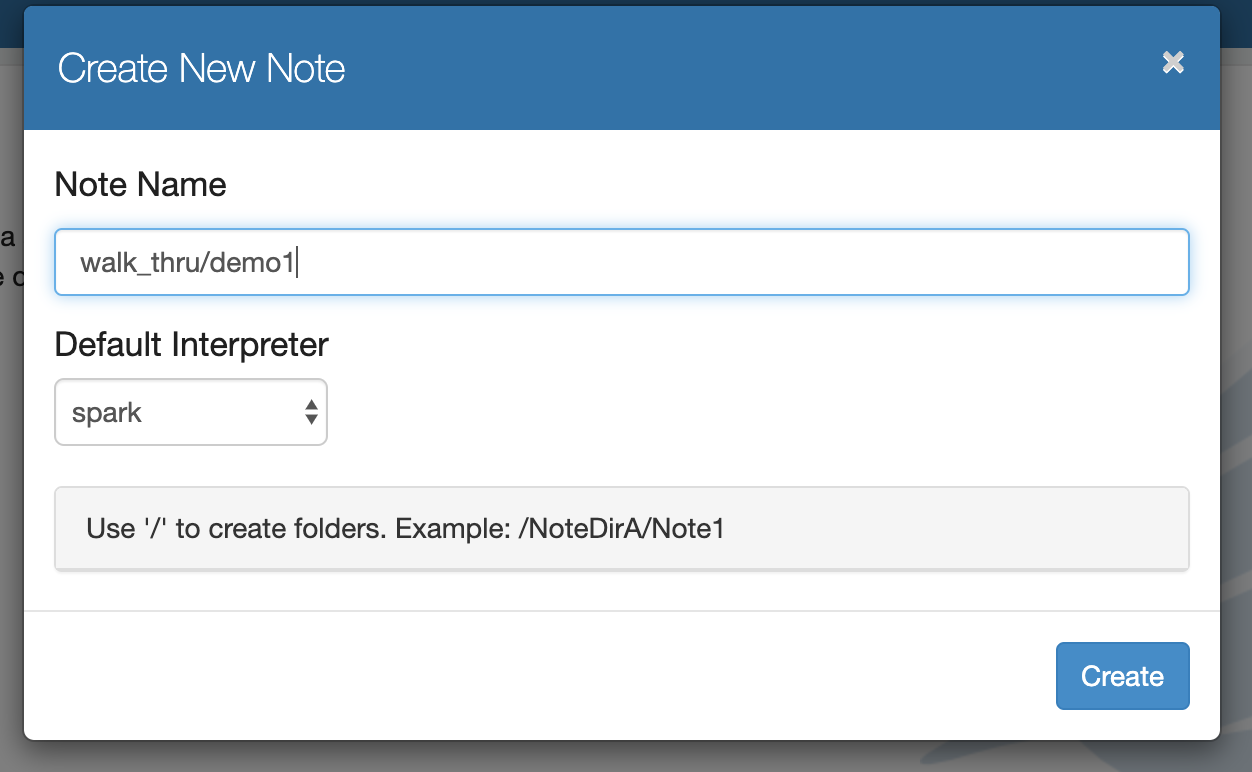

There are no pre-requisites to use Spark with Zeppelin. When you create a new notebook, you can attach a Spark interpreter to it and start writing your Spark code.

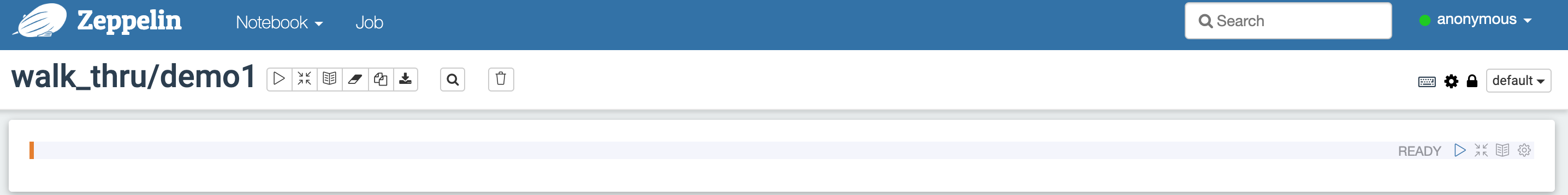

Refer to the below step-by-step guide for using Spark runtime in your Zeppelin notebook:

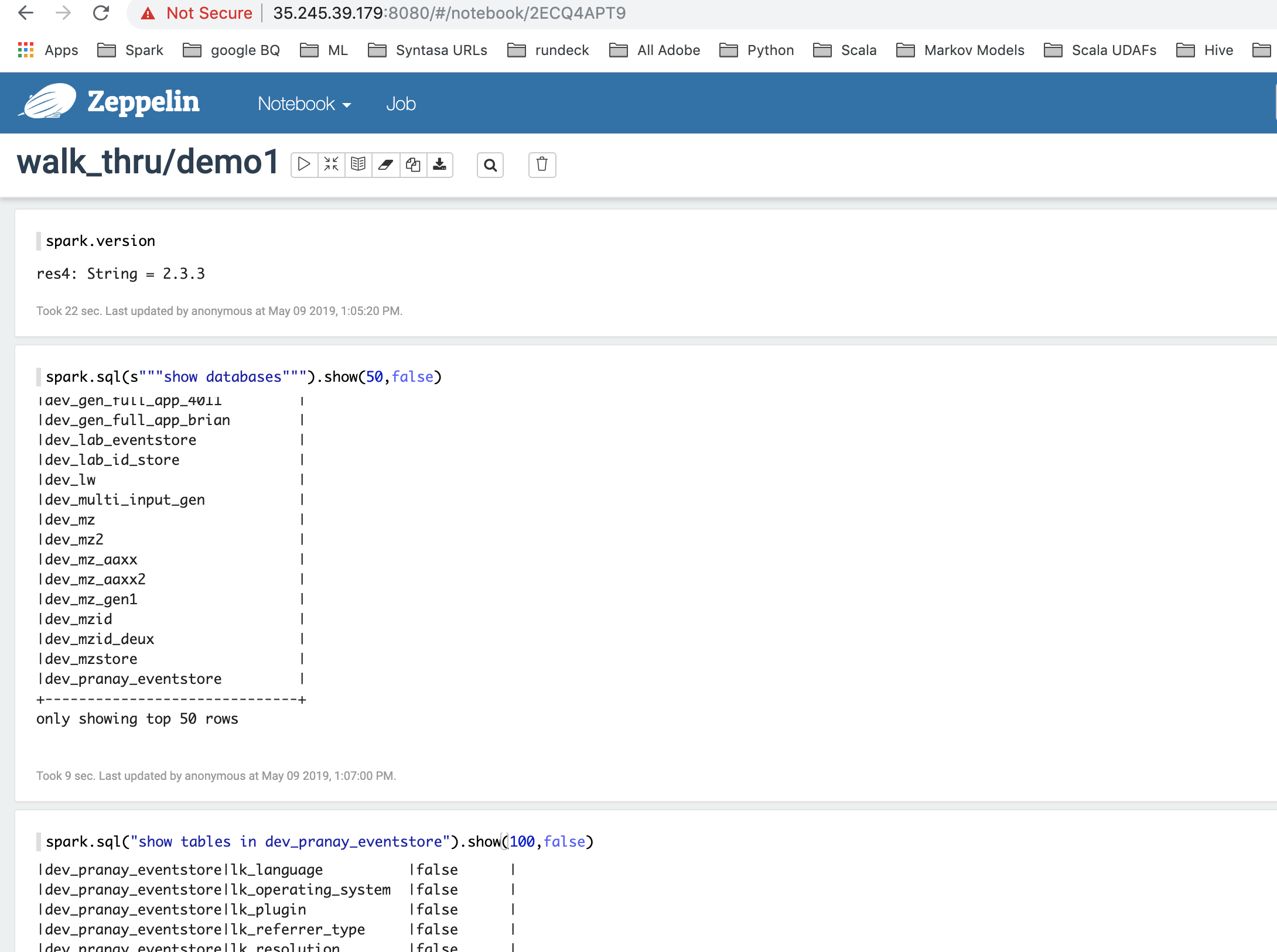

Notice the URL in your browser - The last section of the URL has a unique code - for e.g 2ECQ4APT9 - this is the name of the folder where JSON format of the notebook is stored.

All notebooks are stored at "PROJECT-ID/syn-cluster-config/zeppelin-notebooks" PATH:

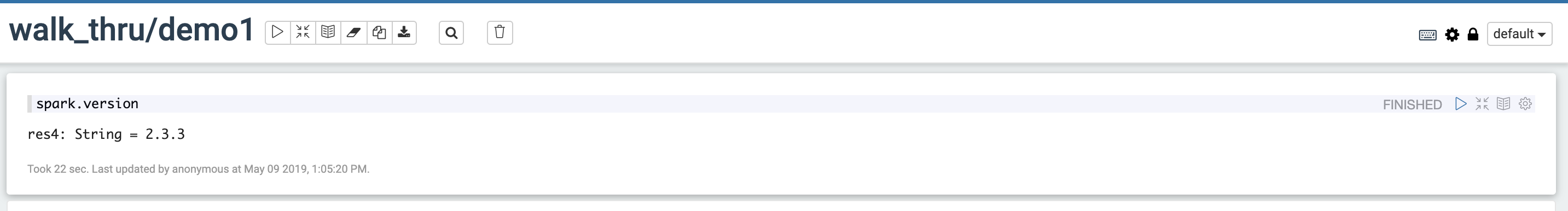

spark.version // prints the spark version // res4: String = 2.3.3


spark.sql(s``""``"show databases"``""``).show(``50``,``false``)

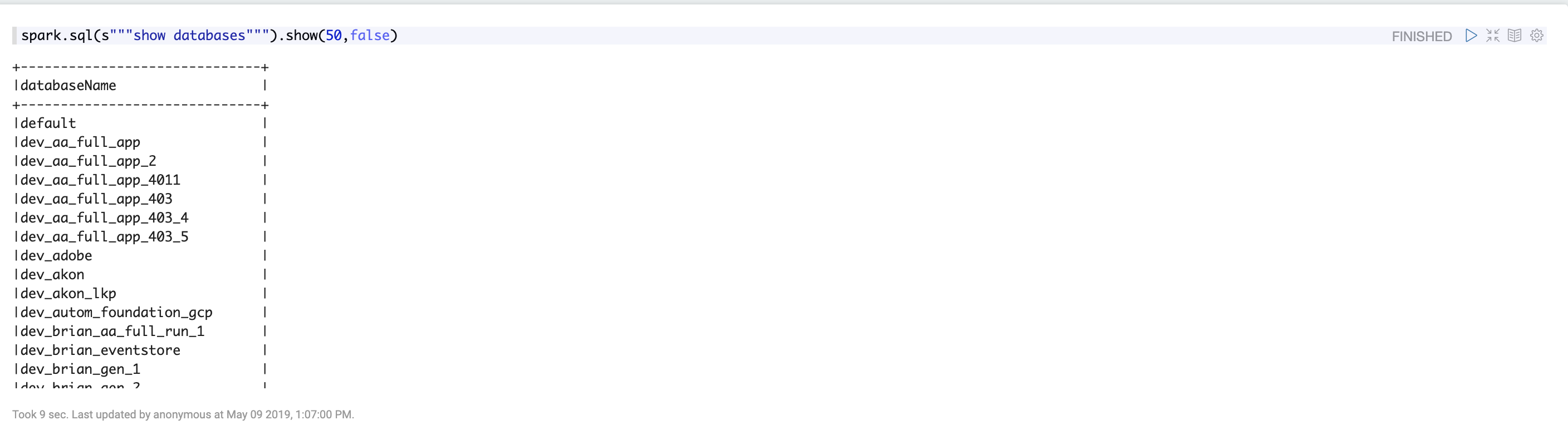

Show databases from your notebook:


 Show tables in your database:

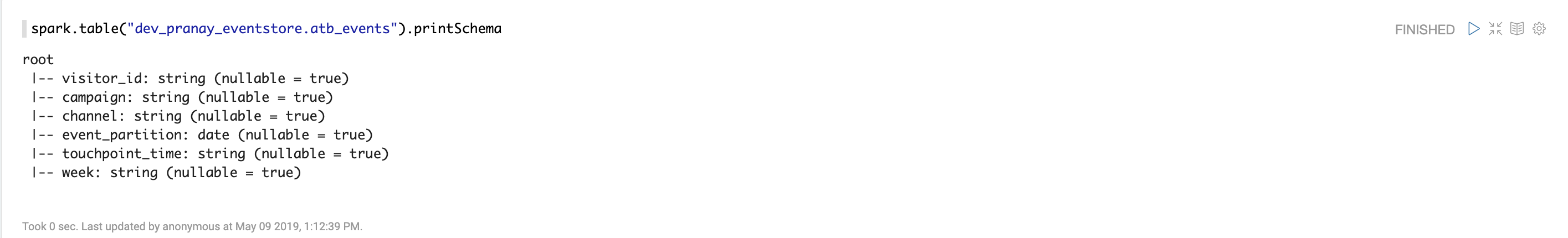

 Look at the schema of one of the tables:

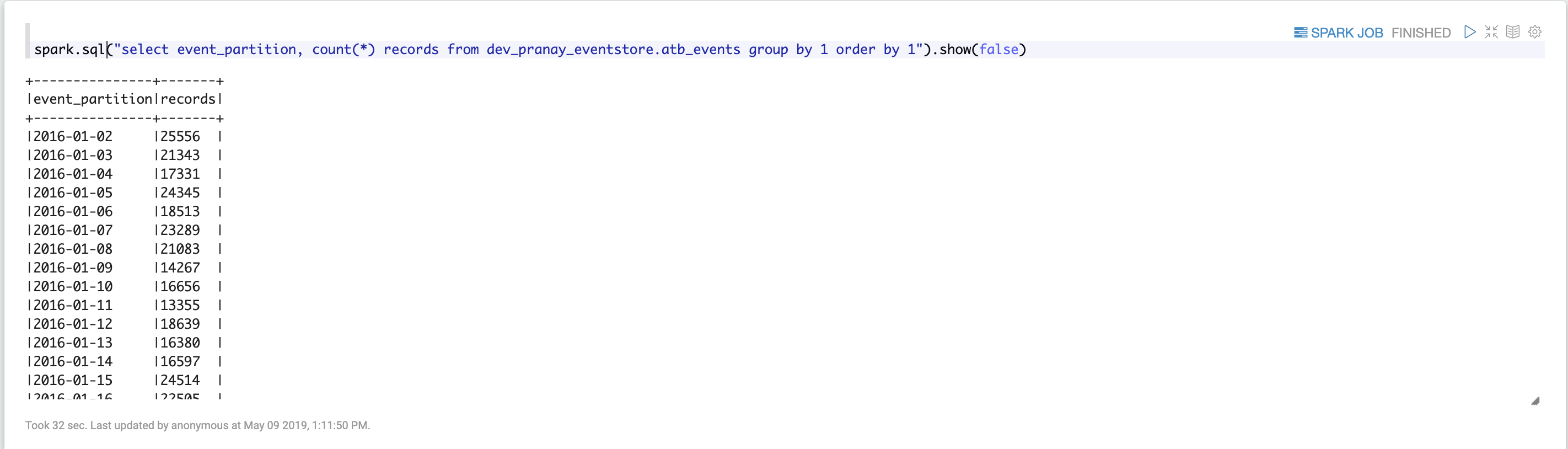

 View records per day for this table:

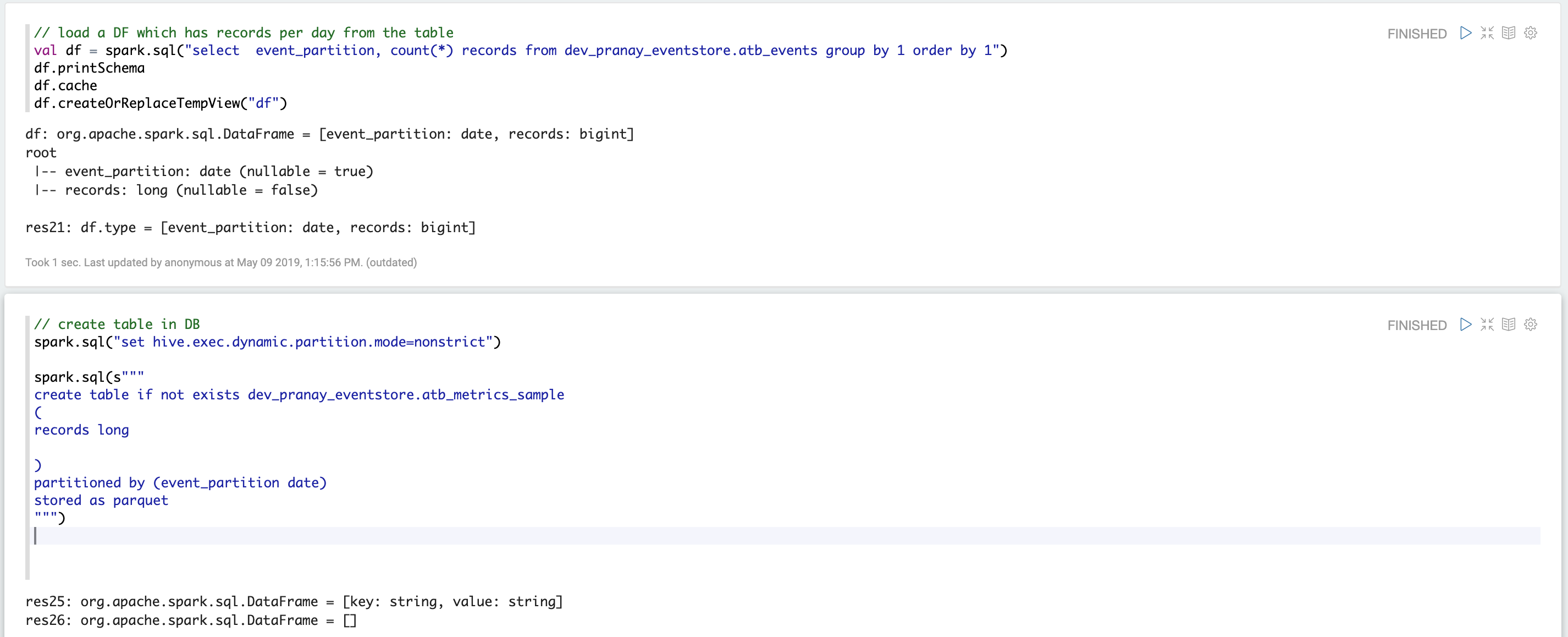

 Load DF and create a table in the database:


 Now you can see your tableatb_metrics_sample in your database:


 Let us save the data into this table:

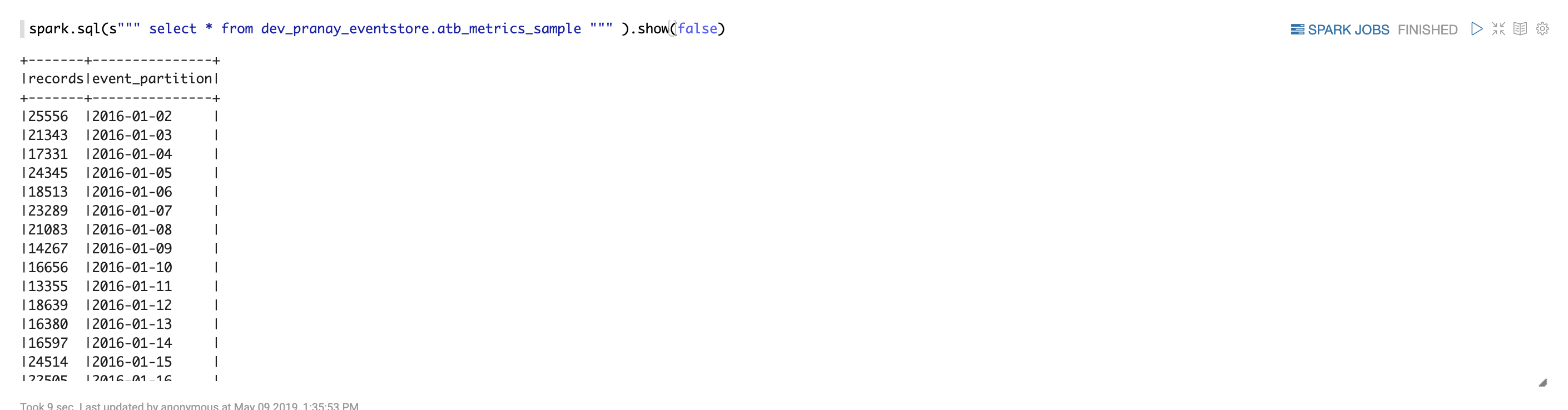

See records in this table:


Features​

  • Notebooks are saved to Google Cloud Storage.  This allows a user to open the notebook in the future and resume his/her work (All notebooks are stored at "PROJECT-ID/syn-cluster-config/zeppelin-notebooks" PATH).
  • All the Syntasa data that is usually accessible through Hive/Spark is accessible from within the Zeppelin Notebook (Time taken to run your piece of code from notebook will depend on the Spark runtime configurations that you create).
  • Similar to Jupyter, it allows you to run your code in blocks.

Note- This is currently in experimental mode. More developments to follow.
